More Payload. Longer Range.
The compound-wing design combines high payload and long-range capability. It supports up to 150 km range with full load for efficient delivery.
150 km（MTOW）
Range
150 kg
MTOW
＜0.5 m
Landing Accuracy
135 km/h（Sea level）
Maximum Cruise Speed
﹥7000 m
Ceiling
5000 m
Takeoff Alttitude

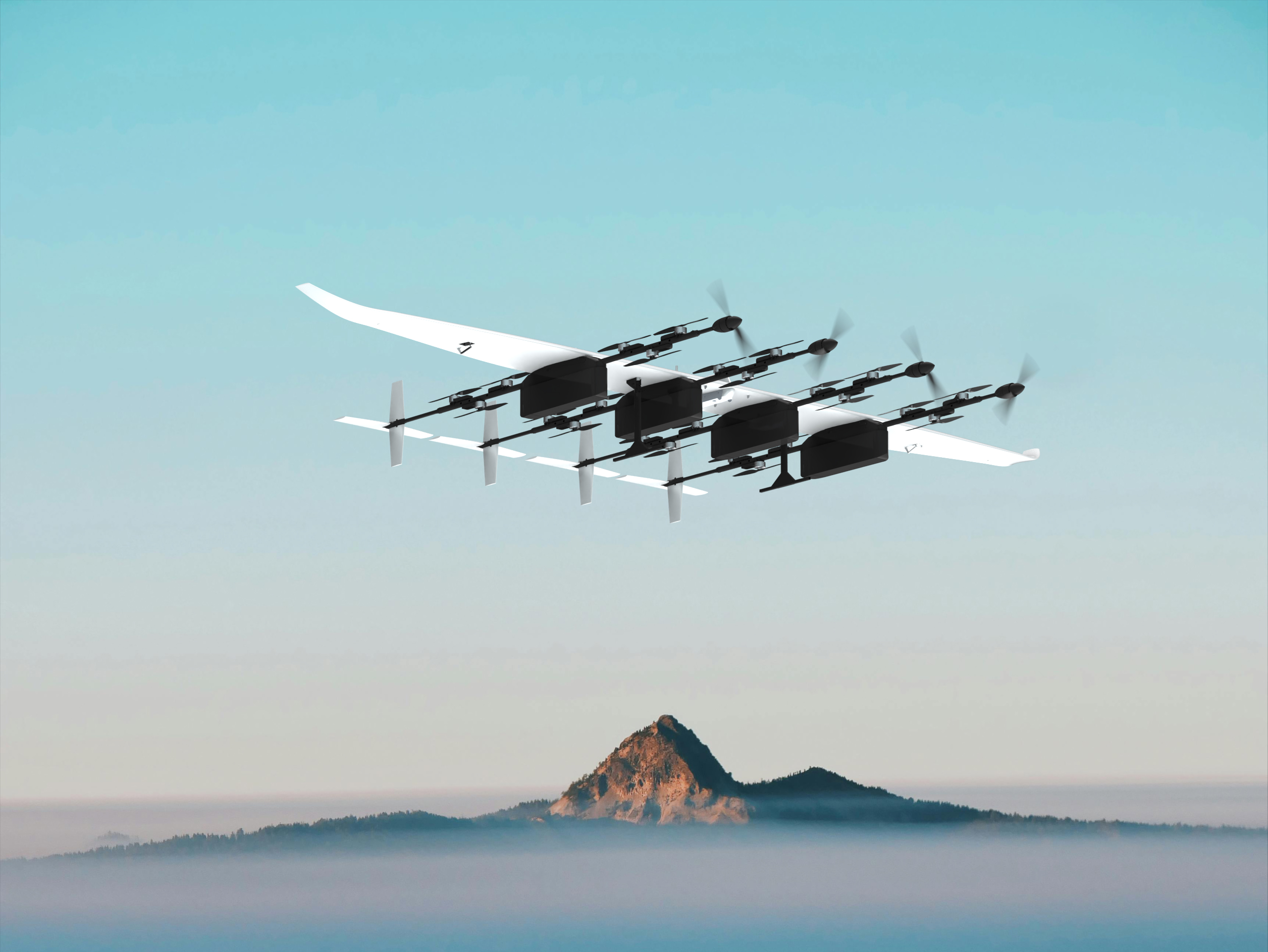

Built for Challenging Environments
Built for all-weather operations with precision airdrop capability in challenging environments such as mountains, plateaus and islands.

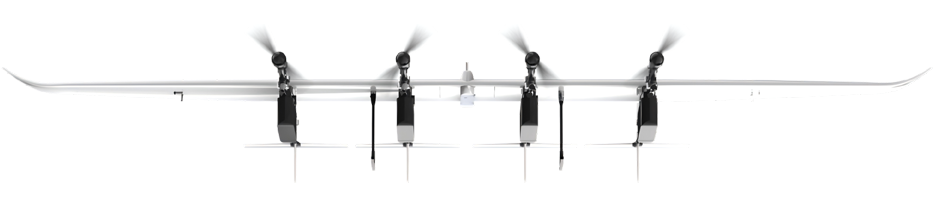

Multiple Lift Rotors
It can safely land with any two lift rotors inoperative. During cruise, the lift rotors are locked parallel to the fuselage, reducing aerodynamic drag and improving flight efficiency.
One-Click Takeoff
Simply plan the flight route and launch the mission with one click. The E80A executes missions autonomously without manual intervention and supports real-time mission adjustments.
Modular Cargo System
A modular cargo compartment supports a range of standard and customized cargo boxes, including waterproof, temperature-controlled, and corrosion-resistant options.
Redundant by Design
4 Independent Power Systems
Independent power supply for enhanced reliability.
4 Independent Forward-Pull Motors
Continued flight with one motor inoperative.
6 Independent Control Surfaces
Redundant roll and pitch control.
Triple-Redundant Critical Sensors
Triple-redundant gyroscopes, accelerometers, barometers, and other critical sensors.

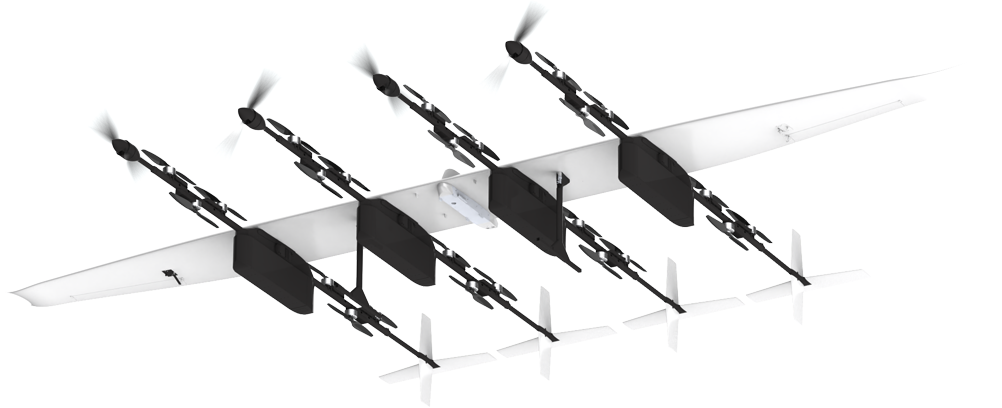

Modular Design
The propulsion system features a modular architecture, allowing power-system modules to be interchanged between aircraft.
Specifications
| Parameters | Specifications |
|---|---|
| Power System | Electric |
| Rotors | 24 lift rotors + 4 cruise rotors |
| Windspan | 6m |
| Maximum Takeoff Weight | 150kg |
| Range (MTOW) | 150km |
| Endurance (MTOW) | 80min |
| Ceiling | 7000m |
| Takeoff & Landing Altitude | 5000m |
| Economical Cruise Speed | 96-127km/h |
| Data Link Range | 30、50、100km（Optional） |
| Wind Resistance | Beaufort 7(Takeoff/Landing)，Beaufort 10 (Cruise) |
| Landing Accuaracy | 0.5m |
| Rain Resistance | Light rain |
| Operating Temperature | -20~+55℃ |
| Assembly/Disassembly Time | < 10 min (2 operators); < 15 min (1 operator) |
